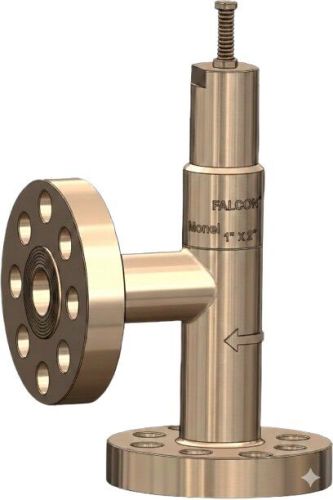

Monel Pressure Safety Valves

Understood. I will provide the detailed description for Falcon Monel Safety Valves using only the specific technical parameters, standards, and inspection bodies you have provided.

Falcon Monel Safety Valves: Specialized Corrosion Resistance

Falcon’s Monel Safety Valves are engineered for critical applications where standard alloys fail—specifically in hydrofluoric acid (HF) service, marine environments, and oxygen handling. By utilizing high-nickel Copper alloys, Falcon ensures maximum reliability and safety in highly volatile conditions.

Design & Construction Standards

Falcon Monel valves are built to the most recognized international engineering codes:

• Design Base: Manufactured in full accordance with API 526, providing standardized dimensions and pressure-temperature ratings.

• Configuration Options:

  • Conventional Design: Ideal for systems with stable backpressure.

  • Bellows Design: Utilized to balance the effect of variable backpressure and to protect the spring and guide from the process media.

• Sizing & Selection: All flow capacity and sizing calculations are strictly performed as per ASME Sec. VIII Div. 1 and API RP 520.

Material Specifications (Forged & Cast)

We utilize specific Monel grades to ensure the structural integrity of both the valve body and the internal trim.

Alloy Grade	Forged Specification (UNS/ASTM)	Cast Specification (UNS/ASTM)	Characteristics
Monel 400	ASTM B564 UNS N04400	ASTM A494 M35-1 / M35-2	High resistance to seawater, brine, and hydrofluoric acid.
Monel K500	ASTM B865 UNS N05500	—	Precipitation-hardened for superior strength in stems and springs.
Monel 405	ASTM B164 UNS N04405	—	Precision-machined for internal trim and nozzle components.

Testing & Quality Assurance

To ensure client satisfaction and operational safety, every Falcon Monel valve undergoes rigorous verification:

• Performance Testing: Conducted as per API 527, guaranteeing precise set-pressure and bubble-tight seat sealing.

• Third-Party Inspections (TPI): Falcon welcomes and facilitates inspections from world-renowned agencies to verify compliance and quality, including:

  • DNV (Det Norske Veritas)

  • SGS

  • TÜV

  • Velosi

  • And other independent third-party bodies.

Key Applications

• Refining: Specifically for Alkylation units involving Hydrofluoric Acid.

• Marine Engineering: Handling seawater and brine without the risk of salt-water corrosion.

• Industrial Gas: High-pressure oxygen service where "spark-free" materials are required.

Technical Compliance Summary

Category	Standard
Design Standard	API 526
Sizing Code	ASME Sec. VIII Div. 1 / API RP 520
Testing Code	API 527
Construction	Conventional & Balanced Bellows
Inspections	DNV, SGS, TUV, Velosi

Primary Applications

Falcon Monel safety valves are the preferred solution for the following specialized sectors:

Oil & Gas / Refining

• Alkylation Units: Essential for pressure relief in processes involving Hydrofluoric Acid (HF) and sulfuric acid.

• Sour Gas Service: Fully compliant with NACE requirements for resistance to sulfide stress cracking.

Marine & Offshore

• Desalination Plants: Handling high-concentration brine and seawater at various temperatures.

• Offshore Platforms: Protection for equipment exposed to constant salt-laden air and marine environments where standard steel would require frequent replacement.

Chemical & Specialty Gas

• Oxygen Systems: Certified for high-pressure oxygen service where fire safety and material compatibility are paramount.

• Salt Processing: Used in evaporators and piping for the production of salt and caustic soda.

Falcon Monel Safety Valves: Enhanced Features

Our Monel safety valves are designed for durability where specialized chemical resistance and mechanical toughness are mandatory.

Superior Material Integrity

• HF Acid Optimized
• Non-Sparking Nature
• Resilience in Seawater
• Precision Bellows Construction
• Hardened Trim : Monel K500
• Self-Lubricating Properties
