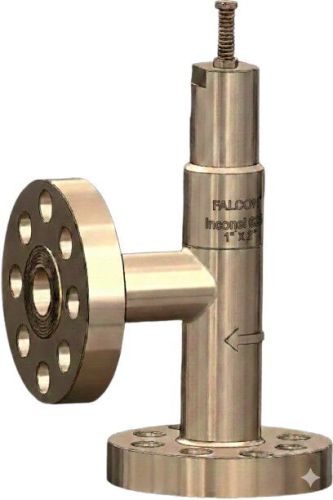

Falcon Inconel 625 Pressure Safety Valves

Engineered for Extreme Pressure and Thermal Stress

Falcon’s Inconel 625 safety valves are the definitive choice for the most severe service conditions. This Nickel-Chromium-Molybdenum alloy is enhanced with Niobium to provide high fatigue strength and superior resistance to oxidation and carburization. When your application involves high-pressure "sour" gas or extreme thermal cycling, Falcon Inconel 625 provides a critical layer of protection.

Key Features of Falcon Inconel 625

• Exceptional Creep-Rupture Strength: Maintains its mechanical properties at high temperatures where standard stainless steels would undergo deformation or "creep."

• Advanced Corrosion Resistance: Highly resistant to a wide range of severely corrosive environments, including pitting, crevice corrosion, and chloride stress cracking.

• Sour Service Ready: Inherently resistant to sulfide stress cracking, making it the industry standard for $H_2S$ (Sour Gas) environments.

• Mechanical Toughness: Provides high tensile strength and fatigue resistance, ensuring the valve remains operational through frequent pressure fluctuations.

Engineering & Design Standards

Falcon Inconel 625 valves are designed and tested to meet the world’s most demanding engineering codes:

• Design Standard: Fully compliant with API 526, ensuring standardized orifice sizes and flanged dimensions for global interchangeability.

• Construction Styles:

  • Conventional: For applications where backpressure is constant and predictable.

  • Balanced Bellows: Utilized to neutralize variable backpressure and protect the spring and guiding surfaces from aggressive media.

• Sizing & Calculations: All flow capacities are calculated in accordance with ASME Sec. VIII Div. 1 and API RP 520.

• Performance Verification: Every valve undergoes rigorous seat tightness and set-pressure testing as per API 527.

Material Grade Specification (Forged & Cast)

We ensure material harmony and structural integrity by utilizing the following Inconel 625 specifications:

Component	Forged Grade (ASTM/UNS)	Cast Grade (ASTM/UNS)
Valve Body / Bonnet	ASTM B564 UNS N06625	ASTM A494 CW6MC
Nozzle & Disc	ASTM B446 UNS N06625	—
Bellows	ASTM B443 UNS N06625	—

Third-Party Quality Verification

For high-risk and offshore projects, Falcon valves are available for witness testing and certification by:

• DNV (Det Norske Veritas)

• SGS

• TÜV

• Velosi

• Other major international inspection bodies.

Primary Applications

Falcon Inconel 625 safety valves are purpose-built for:

1. Offshore Oil & Gas: High-pressure subsea equipment and "sour" gas relief systems.

2. Petrochemical: Handling highly acidic waste streams and phosphoric acid.

3. Marine Engineering: Components exposed to high-pressure seawater and brine.

4. Aerospace & Power: High-temperature steam and gas exhaust relief.

Technical Compliance Matrix

Category	Falcon Standard
Design Base	API 526
Capacity Sizing	ASME Sec. VIII Div. 1 / API RP 520
Leakage Testing	API 527
NACE Compliance	MR0175 / ISO 15156
Inspections	DNV, SGS, TUV, Velosi

Special Features of Falcon Inconel 625 Safety Valves

Falcon’s Inconel 625 series is designed for "Severe Service"—where standard alloys fail due to mechanical stress or high-temperature oxidation.

• High-Integrity Bellows System
• Fatigue-Resistant Design
• Hermetic Isolation
• Precision Trim & Seating
• Anti-Galling Technology
• Hardened Disc Inserts
• Thermal & Pressure Stability
• Niobium-Stabilized Matrix
• Full-Nozzle Construction
