| Business Type | Manufacturer, Exporter, Supplier |
| Material | Metal |
| Application | Liquid Control |
| Color | Dark-Golden |
| Click to view more | |
Product Details

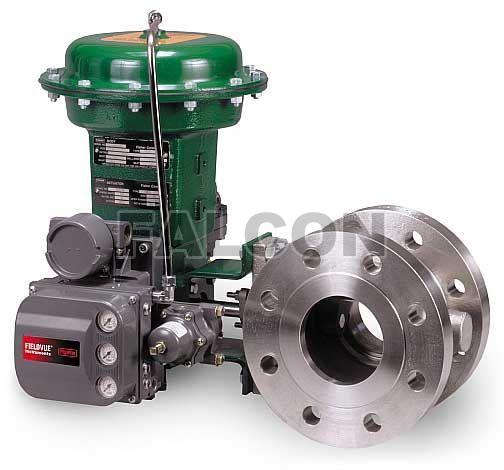

Pressure Reducing Control Valve is a device that controls the flow of air, liquid, or whatever other fluid in a process to minimize pressure. Falcon Valves & Flanges Pvt Ltd is a leading manufacturer and supplier of various types in a variety of applications, including the Pressure Reducing Check Valve.
Our pressure control valves at Falcon Valves & Flanges Pvt Ltd are intended to provide customizable pressure control and restricting functions. As a reputable pressure control valve manufacturer, we serve the nation's major manufacturing markets. Our extensive product line contains hydraulic pressure control valves in a range of patterns as well as process control valves, which would be applicable to a wide range of uses.
Specifications
| SPEC | VALUE |
| RANGE | 1/2” - 16” (15mm - 400 mm) |
| RATINGS AND CONNECTIONS | Flanged: ANSI 150 – 2500, UNI-DIN 10 - 400; welded: BW or SW; screwed: NPT 1/2” through 2” (15 through 50 mm) |
| BODY MATERIALS | Carbon steel; stainless steel; chrome-moly, Inconel, Monel, Hastelloy, Duplex, Super duplex, Alloy 20 |
| ACTUATORS | multi-spring diaphragm; cylinder |
| TRIM | Single seat plug top guided; single or double,stage are available |
| INHERENT CHARACTERISTICS | Linear or equal percentage |
| Diaphragm | Nitrile / Neoprene (nylon reinforced) |
| Accessories | Valve Positioners - Pneumatic, Electro-Pneumatic, Smart |
| Instruments - Airset, Solenoid Valve, Volume Booster, Airlock, Limit Switches | |
| Features | Top or Side Mounted hand wheel, Limit Stops Removable Blind Head, Steam Jacketing etc. |
