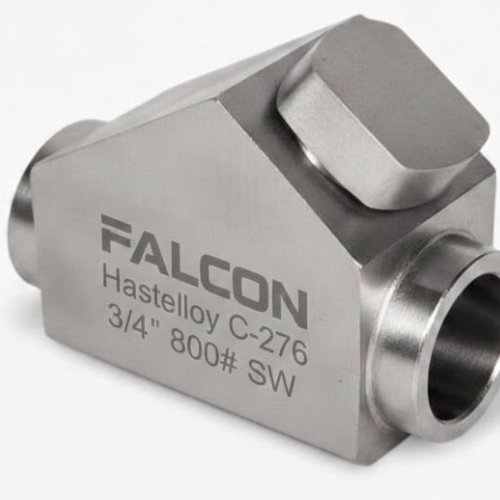

Hastelloy C276 Y Strainers

At Falcon, we provide the ultimate solution for "extreme-service" environments. When standard alloys fail due to aggressive chemical attack, our Hastelloy C276 (Alloy C276) Y-Strainers offer the highest level of protection available in the industry.

Hastelloy C276 is a Nickel-Molybdenum-Chromium super-alloy designed for exceptional resistance to a vast range of severe environments.

• Master of Acids: Outstanding resistance to concentrated Hydrochloric, Sulfuric, and Phosphoric acids.

• Chloride Immunity: Virtually immune to pitting and crevice corrosion in high-chloride environments.

• Oxidization Resistance: Excellent performance in oxidizing atmospheres up to 1040°C.

• Structural Integrity: High resistance to stress-corrosion cracking (SCC) even in sour gas applications.

Engineered for high-pressure, hazardous chemical service.

• The Forging Edge: Forging refines the metal's grain structure, eliminating internal defects and ensuring 100% pressure containment.

• High Pressure: Ideal for Class 600, 1500, and 2500 systems.

• Safety: The preferred choice for "lethal service" where material failure is not an option.

The versatile choice for standard industrial chemical flow.

• Optimized Flow: The casting process allows for a smooth internal Y-pattern, reducing turbulence and pressure drop ($\Delta P$).

• Uniform Protection: Our CW12MW cast grade matches the corrosion resistance of the forged material, offering a cost-effective solution for larger pipelines.

Falcon ensures all materials comply with global standards for traceability and performance:

Falcon’s C276 strainers are the standard for the most difficult industrial processes:

• Petrochemical: Handling sour gas and high-temperature organic acids.

• Waste Management: Filtration of hazardous chemical effluents.

• Pulp & Paper: Bleaching sections involving chlorine dioxide.

• Pollution Control: Flue gas desulfurization (FGD) systems.

• Pharmaceuticals: Synthesis of highly reactive chemical compounds.

• Design Code: ASME B16.34 (Valves, Flanged, Threaded, and Welding End).

• Pressure Ratings: ANSI/ASME Class 150 through Class 2500.

• Testing: 100% Hydrostatic and Pneumatic testing per API 598.

• End Connections: Flanged (RF/RTJ), Socket Weld (SW), and Threaded (NPT).

Falcon Quality Assurance: Every Hastelloy C276 Y-Strainer is supplied with a full EN 10204 3.1 Material Test Report (MTR), guaranteeing the chemical composition and mechanical properties of your super-alloy component.

Falcon specializes in Hastelloy C276 Y-Strainers, the ultimate solution for extreme environments where standard alloys fail. C276 is a Nickel-Molybdenum-Chromium super-alloy providing unmatched resistance to pitting, stress-corrosion cracking, and oxidizing atmospheres up to 1040°C.

We offer two high-performance manufacturing paths: Forged (ASTM B564 N10276) for high-pressure Class 1500/2500 "lethal service" and Cast (ASTM A494 CW12MW) for optimized flow in Class 150/300/600 systems. These strainers are essential for flue gas desulfurization, sour gas processing, and aggressive acid filtration.

• Design: ASME B16.34

• Testing: API 598 (100% Hydro/Pneumatic)

• Connections: Flanged (RF/RTJ), SW, and NPT

• Certification: EN 10204 3.1 MTR

Falcon’s C276 strainers feature streamlined Y-pattern bodies to minimize pressure drop (\Delta P) while ensuring maximum structural integrity.
