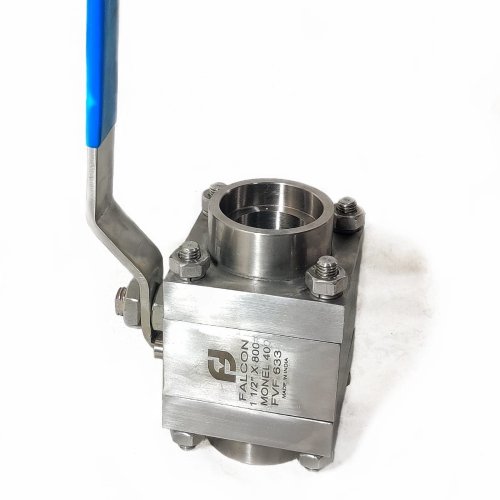

Forged ASTM B564 UNS N04400 Monel Ball Valves

Falcon UNS N04400 (Monel 400) forged ball valves are the ultimate solution for high-pressure isolation in marine and hydrofluoric acid environments. By combining the rapid, quarter-turn operation of a ball valve with the superior mechanical properties of a Nickel-Copper forge, Falcon provides a valve that is practically immune to the corrosive effects of brackish water and high-velocity brine.

Falcon ball valves are engineered for "Zero-Leakage" performance in hazardous conditions.

• Forged Body Integrity: Manufactured per ASTM B564, our forged bodies offer a high-density molecular structure, ensuring zero porosity and superior resistance to thermal shock compared to cast alternatives.

• Blow-out Proof Stem: The stem is designed to be bottom-entry, ensuring it remains securely inside the valve even under extreme pressure surges.

• Self-Cleaning Seats: The wiping action of the ball against the seat during operation clears away scale and debris—essential for marine applications where bio-fouling can occur.

• Anti-Static Protection: Features an internal grounding mechanism to prevent static electricity discharge, a critical safety requirement for refinery and gas services.

• Precision Lapping: The Monel 400 ball is diamond-lapped to a mirror finish. This reduces operating torque and prevents premature seat wear, ensuring the valve remains easy to operate over thousands of cycles.

• High-Strength Stem: We use high-tensile Monel 400 or Monel K-500 for the stem to provide the extra torque capacity needed for high-pressure sealing.

• Advanced Seating Options:

  • PTFE/RPTFE: For general chemical and marine service (up to 200°C).

  • PEEK/Devlon: For high-pressure "Sour Gas" or abrasive media.

  • Metal-to-Metal: For high-temperature or slurry applications.

Every Falcon Monel 400 valve is a product of rigorous quality control:

• PMI Verification: 100% Positive Material Identification confirms the 63% Ni / 30% Cu ratio, ensuring no "dilution" of the alloy's properties.

• Hydrostatic & Pneumatic Testing: All valves are tested to API 598 standards for both high-pressure shell integrity and low-pressure bubble-tight seating.

• HF Acid Service Preparation: For refinery orders, valves are specially cleaned and degreased to meet stringent UOP or Phillips HF Alkylation specifications.

• Traceability: Full EN 10204 3.1 certification is provided for all pressure-retaining parts.

Falcon holds deep domain expertise in deploying Monel 400 valves across several niche sectors:

• HF Alkylation Units: Decades of experience supplying valves that resist the highly aggressive "Reducing" nature of hydrofluoric acid.

• Subsea & Offshore: Expertise in designing valves for seawater cooling systems and fire-water loops where bio-fouling and chloride-ion cracking are the primary threats.

• Salt Processing: Proven reliability in brine heaters and evaporation plants where standard stainless steel fails within months.

The "Falcon" brand is a mark of durability. Our forged Monel 400 ball valves are specifically chosen by engineers who prioritize long-term Life Cycle Cost (LCC) over cheap initial price, as our valves significantly reduce maintenance intervals and unplanned shutdowns in corrosive environments.
